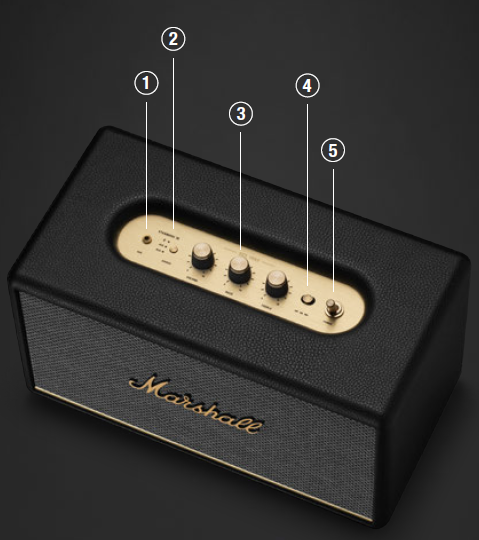

STANMORE III - Device layout

1. 3.5 MM INPUT
   Plug in an analogue audio device with a 3.5 mm stereo jack.


2. SOURCE SELECTION
   Push the source button to toggle between Bluetooth®, AUX, and RCA audio sources. A lit indicator shows which source is selected. This can also be selected from the Marshall Bluetooth app.
   Caution: Make sure that the volume is set to low on both the speaker and the audio device before using the speaker.


3. AUDIO CONTROLS
   Stanmore III includes three controls for adjusting the audio.
   1. Volume control
   2. Bass control
   3. Treble control


4. MEDIA CONTROL
   Control the audio directly from the top panel when playing via Bluetooth.
   1. Push to play or pause
   2. Push right to skip forward
   3. Push left to skip back
   4. Hold left or right to rewind or fast forward

   Playback can also be controlled from the Marshall Bluetooth app.


5. POWER SWITCH
   Use the power switch to turn the speaker on or off.

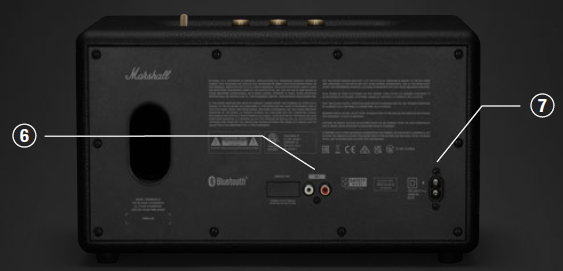

6. RCA INPUT (LEFT AND RIGHT)
   Plug in an RCA audio device, such as an RIAA turntable.


7. POWER INPUT
   Use the included mains lead to connect Stanmore III to the wall socket.
